    Rotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : EC1115S-5C
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Rotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary Switch

    Rotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary Switch


    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D and manufacturing company, its products are mainly used in consumer electronics, home entertainment products, mobile communications products, automotive electronics, medical equipment products. By the customer's affirmation. Since the establishment of the company in 1998, the company has been with the development of electronic components. During this period, the company has won many awards such as ISO9001 and quality management industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of fierce domestic competition, we protect our leadership position and reputation in order to meet new challenges.


    KKG ELECTRONICS FACTORY OFFER YOU :


    1: FACTORY DIRECT PRICE.
    2: NICE QUALITY.
    3: SMALL ORDER WELCOME...

    4: SUPPORT 7 DAYS REFUND MONEY

    5: ONLINE PAYMENT.

    6: AFTER SALES SERVICES 24/7

    We had the honor to serve many of the famous big companies all over the world

    WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".
    WE ACCEPT ‘SUPPORT’ OEM ORDERS
    WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".
    WE BELIEVE IN “WIN-WIN”SITUATION
    LOOKING FOR AGENT
    "With us your MONEY in safe ; Your BUSINESS in safe"

    Product Description

    Encoder is a sensor that outputs physical quantity information such as Angle, length and speed by digital quantity 0 and 1 encoding. Because of its high precision, large range measurement, fast response and digital output characteristics; Small size, light weight, compact structure, easy installation, simple maintenance, reliable work and other excellent characteristics, so become today's industrial control system is favored and an indispensable part.


    Mechanical characteristics
    Total rotational angle360°
    Click torque30-120gf.cm
    No. Of click

    12pules/12detent 12 click step angle:30±2°

    24pules/24detent 24 click step angle:15±2°

    Push-pull strength8.0kgf Max
    Shaft play in rotational wobble5°Max
    Electrical characteristics
    ratingDC 5V,A,B lead 5mA Max, C lead 10mA Max
    resolution24 pules/360° 12pules/360°
    Insulation resistance100MΩMin at DC250V
    Dielectric1 minute at AC 300V
    Phase differenceT1.T2. T3.T4≥0.08T
    Sliding noiseT1,t3≤3mS t2≤2mS
    Endurance characteristics
    Rotational life30000±200 cycles≤100gf.cm
    Storage temperature range-40℃~85℃
    Operating temperature range-30℃~80℃
    Soldering characteristic

    Dipping in soldering≤260℃±5°,within 3S

    Solder by hand≤300℃±5°, within 3S

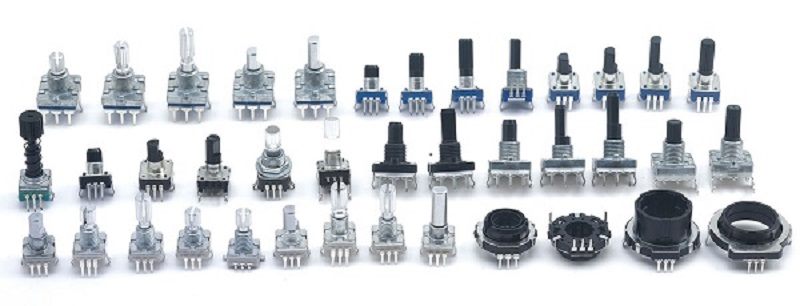

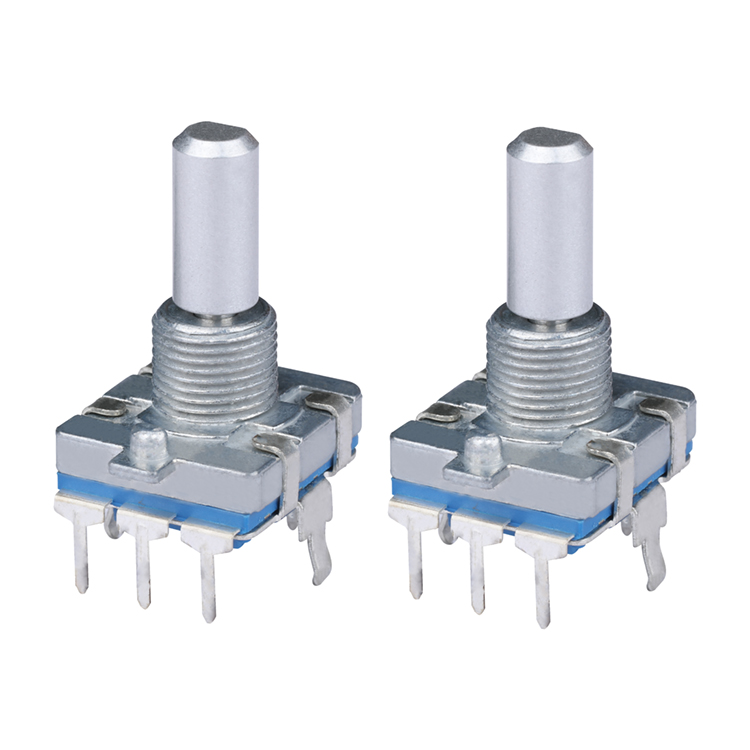

    Product Display


    Rotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary Switch

    Rotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary SwitchRotary Shaft Encoder Switch , 360° Rotational Coded Switch With 24Pulse,Incremental Encoder Switch,Coded Rotary Switch

    Drawing



    Product Application



    Provide solutions for electronic switch components in the automotive industry. The products have been approved by the International Automotive Working Group and have been assessed by the world's leading certification body to obtain IATF16949 management certification.

    Shipping



    EMS: need 10-15 business days to reach your side

    UPS: special express for North America,need 3-5 working days

    DHL: normally 3-5 business days could reach your side

    FEDEX: normally 3-10 business days could reach US and European

    or By Ocean & By Air

    Service:

    WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.

    If the product received is not as DESCRIBED, a replacement will be issued.


    FAQ


    Q: what is your MOQ for this item?

    A: MOQ is 100, but always flexible.


    Q: Can I get some samples?

    A: Sure, Sample order is available.


    Q: what about lead time?

    A: 7-10 days after deposit received.


    Q: terms of payment?

    A: Trade Assurance, T/T, credit card, western union, cash, Money Gram


    Q: My item was damaged in shipping?

    A: Our parts are carefully packaged to prevent damage in shipping.
