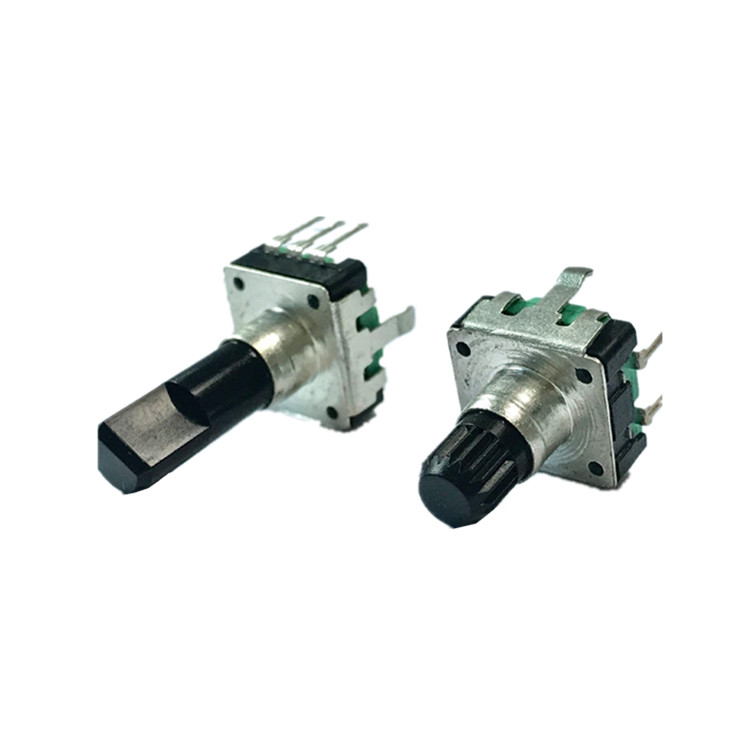

    Encoder Switch,push button 24 Pulse 12 Pulse Coding 360 ° Rotary Encoder,Incremental Encoder Switch,Coded Rotary switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : EC12S
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Encoder Switch,push button 24 Pulse 12 Pulse Coding 360 ° Rotary Encoder,Incremental Encoder Switch,Coded Rotary switch

    Encoder Switch,Push Button 24 Pulse 12 Pulse Coding 360 ° Rotary Encoder,Incremental Encoder Switch,Coded Rotary Switch


    KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing the components such as switches, sockets and connectors. The Production of Products mainly used in computer products, consumer electronics, electrical & electronics, industrial equipment & components......

    So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China, Taiwan(China) and Hong Kong .

    KKG ELECTRONICS FACTORY OFFER YOU :


    1 More than 2,000 models of switches and sockets.

    2 Monthly production capacity: 30 million pieces.

    3 MOQ: 5,000pcs, it’s negotiable.

    4 Good quality with competitive price.

    5 We can offer free samples with shipping and taxes pay by the buyer.

    6 Various operation force, height, and color for your choice.

    7 The discount depends on your order quantity.


    Product Description


    Mechanical characteristics
    Total rotational angle360°
    Click torque20-100gf.cm
    No. Of click

    24 click step angle:15±2°

    12 click step angle:30±2°

    Bushing-nut tightening torque8.0kgf.cm Min
    Shaft play in rotational wobble5°Max
    Electrical characteristics
    ratingDC 5V,A,B lead 5mA Max, C lead 10mA Max
    resolution24 pules/360° 12pules/360°
    Insulation resistance100MΩMin at DC50V
    Dielectric1 minute at AC 300V
    Endurance characteristics
    Rotational life30000±200 cycles≤100gf.cm
    Storage temperature range-40℃≈+85℃
    Operating temperature range-30℃≈+80℃
    Soldering characteristic

    Dipping in soldering≤206℃±5°,within 3S

    Solder by hand≤300℃±5°, within 3S

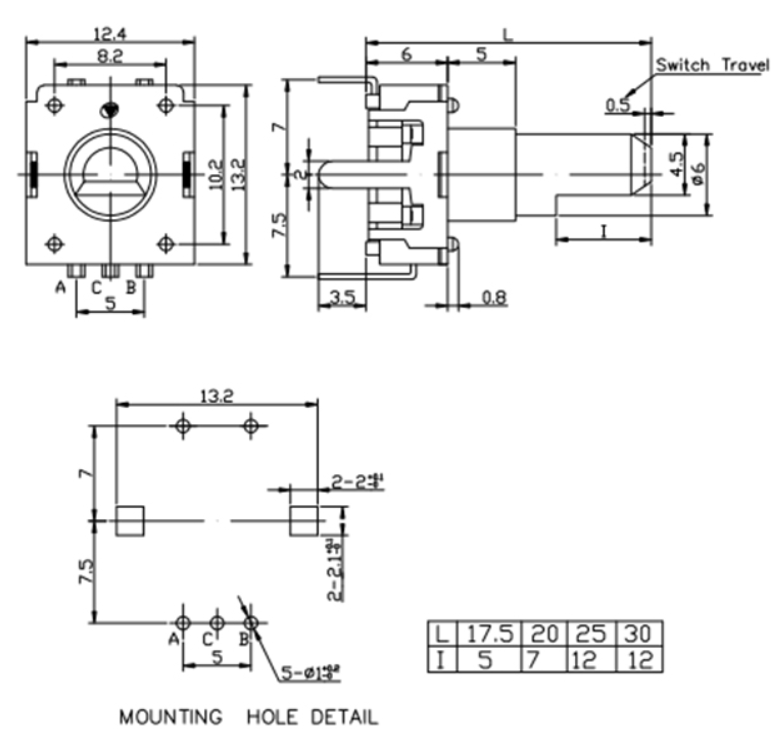

    Drawing


    FAQ


    Q1: Are you a factory or trader?

    we are a factory.


    Q2: Why choose your company?

    1.more than ten years manufacture experience about more kinds of switch

    2.good quality,competitive price,fast delivery time

    3.more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.

    4.Design and Develop new mould depends on clients requirement

    5.The best after-sale service

    6.Anytime you need help ,please contact with us we keep online all the time.


    Q3: How to get the samples and quote the best price soon?

    we need to know more details about the products you inquired,for example

    what functions?what size?what rating?where the type to be used?

    we free to offer the samples


    Q4.How about the delivery time?

    Gernally speaking it is need 2 weeks if your quantity below 10K pcs or it depends on your quantity to confirm the time.


    Q5:How about the package of the goods?

    we often package the goods more saty, both inner box and outside cartons
