    2 Position 10 Pin SMD 1P2T Vertical Slide Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : MSS22C01R-TG15-W22
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    2 Position 10 Pin SMD 1P2T Vertical Slide Switch

    Slide Switch,2 Position 10pins SMD1P2T Vertical Sliding Switch,Push Tact Switch,Interruptor On-Off Micro Toggle Switches


    A sliding block is arranged inside the sliding switch. During operation, the sliding block is driven in different ways to drive the sliding block to make the sliding block act, and the switch contact is connected or disconnected, so as to play the role of switch. It can also be said that by pushing the button handle equipped with the moving contact to slide, the moving contact is connected from one group of static contact to another group of static contact to realize the switch of circuit replacement.

    Sliding switch is a switch used to operate on and off laterally, so it is defined as sliding switch. It is also one of the switches with the most varieties. It is also one of our earliest products of KKG.


    Company Profile


    KKG specializes in world-known brands distribution of electronic components, including passives, actives, semiconductors, electromechanical components and electronic parts.
    The components that we offer are widely used in LED drive power supplies, energy-saving lamps, mobile communications, computers, consumer electronic information products, household appliances, new energy vehicles, industrial automation control equipment and etc..


    2 Position 10 Pin SMD 1P2T Vertical Slide Switch


    KKG ELECTRONICS FACTORY OFFER YOU :


    1: FACTORY DIRECT PRICE.
    2: NICE QUALITY.
    3: SMALL ORDER WELCOME...

    4: SUPPORT 7 DAYS REFUND MONEY

    5: ONLINE PAYMENT.

    6: AFTER SALES SERVICES 24/7

    We had the honor to serve many of the famous big companies all over the world

    WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".
    WE ACCEPT ‘SUPPORT’ OEM ORDERS
    WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".
    WE BELIEVE IN “WIN-WIN”SITUATION
    LOOKING FOR AGENT
    "With us your MONEY in safe ; Your BUSINESS in safe"

    Action: Contact us now!



    Slide Switches' Features:


    1. All kinds of variable levels design;

    2. Assembling ways: DIP and SMT;

    3. The switch operating force equality, good feeling:

    4. The terminals state can be design according to requirements


    Product Specificatio

    Model NO.
    MSS22C01R-TG15-W22 ( GY )
    Pin
    10 pin
    Contact resistance
    ≤100mΩ
    Insulation resistance
    :≥100MΩ
    Operating force
    180±50gf
    Compressive strength
    (40℃)≤95%
    Rating
    DC12V, 50mA

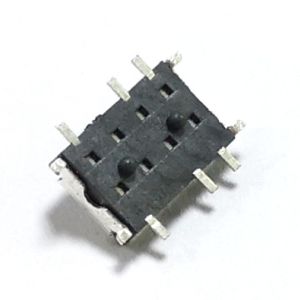

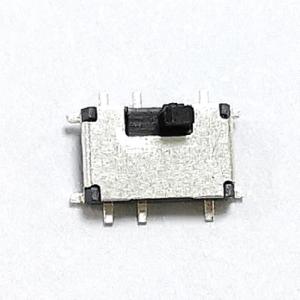

    Product Display:

    2 Position 10 Pin SMD 1P2T Vertical Slide Switch




    Product Drawing:

    2 Position 10 Pin SMD 1P2T Vertical Slide Switch



    Product Application

    Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment, robots and industrial machinery.

    Waterproof Tact Switch Precautions for Safe Use
    Use the tact switch within the rated voltage and current ranges, otherwise the Switch may have a shortened life expectancy, radiate heat, or burn out. This particularly applies to the instantaneous voltages and currents when switching.




    Packing & Delivery


    1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;
    2. Original manufacturer package, the out package will be in a well condition with suitable size to save the shipping cost;
    3. Sample with same-day or the next-day delivery, bulk order within 3-7 days, but depens on the exact quantity;
    4. Customer shipping account are available;
    5. If the declared value for customs clearance are required, please tell us before shipping;
    6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea shipping.


    FAQ:

    Q1. Does the price support fixed price?

    A: no support, the offer will be based on market price changes and exchange rate changes.


    Q2.Why choose your company?

    A: 1. Manufacture experience: 10-year experience in this field.

    2.Quality assurance: All the products will go through lots of tests carefully before dispatch.

    3. Competitive production capacity and fast shipping.

    4. Manufacturer's price: Factory direct sale, most competitive price.

    5. We provide OEM/ODM service, If you have unique design, we can handle the whole development

    from outlook design, mechanical structure, electronics design and open the mold.


    Q3. Can you make products according to the samples?

    A: Yes, it's available to make products according to customers' requests.

    We can set new mould or modify ours .


    Q4. What is your sample policy?

    A: Free Sample is provided if there is in stock, and customers need to pay the freight fee.


    Q5. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery.


    Q6: How do you make our business long-term and good relationship?

    A: 1.Our high quality and competitive price are the most important factors to maintain

    long-term and good relation -ship with our customers.

    2. Good service is our basic principle for every customers.
