Slide Switch,Vertical Dip 1P2T 3pin Sliding Switch,SPDT 3 Pin
Interruptor On-Off Push Tact Switch,Toggle Switch
Sliding switch is a kind of switch with simple structure; It is a
switch that uses the toggle lever to change the working state of
the contact (on and off). It is widely used. It is characterized by
stable performance, convenient use and low cost. It can be used to
cut off and connect the power supply, and can also be used to
change gears. The arrangement of leading out feet can be divided
into single row and double row.
Sliding switch is a switch used to operate on and off laterally, so
it is defined as sliding switch. It is also one of the switches
with the most varieties. It is also one of our earliest products of
KKG.
Company Profile
KKG specializes in world-known brands distribution of electronic
components, including passives, actives, semiconductors,
electromechanical components and electronic parts.
The components that we offer are widely used in LED drive power
supplies, energy-saving lamps, mobile communications, computers,
consumer electronic information products, household appliances, new
energy vehicles, industrial automation control equipment and etc..
KKG ELECTRONICS FACTORY OFFER YOU :
1. Since 2002, more than 10 years experience of Manufacture.
2. Variety of Type, Provide Professional Products with more than
2,000 type.
3. Original manufacturer with direct factory price, Competitive &
Professional.
4. High Standard management for quality control.
5. Small order acceptable: 1,000 pieces.
6. Safe payment terms: T/T and Western Union are available
7. Prompt Delivery & Lowest shipping cost : We can get low discount
from DHL, Fedex, UPS, TNT, EMS, etc.
8. OEM, ODM available.
9. Got good reputation both at home and abroad. Long-term Supplier
for Customers' reference.
10. Excellent Service, Smooth export procedure.
Slide Switches' Features:
1. All kinds of variable levels design;
2. Assembling ways: DIP and SMT;
3. The switch operating force equality, good feeling:
4. The terminals state can be design according to requirements
Attention of useing Slide Switch
l Be careful with chemicals
Avoid to be exposed into the strong chemical air of ammonia, amine,
alkali solution, hydrocarbon, ketone, ester and halocarbon,etc.
Because the base of slide switch contain the synthetic resin like
the makrolon etc.
l Be careful with scaling powder
Avoid to use the Water-soluble Flux when solder, otherwise it will
has the negative impact for the metal and other material of slide
switch.
l Tin solder
When design the wiring and solder, please attention the melting tin
flow to the PCB, it will be lead to the poor contact.
l The height of knob
When the width A of the slider keep constant, the height is the
shorter the better (at least 5mm). The height of knob the shorter
the hand feeling the better. And the point out the higher the hand
feeling the worse.
l Drive arm
Be attention the operation point don’t far away from the middle
line of knob. As the same reason, the distance of the two parts is
the shorter the better
Product Specification
Model NO. | SS12F17 |
Pin | 3 pin |
Contact resistance | 30mΩ Max |
Insulation resistance | 100MΩMIN |
Operating force | 300gf±100gf |
Travel | 3.2mm |
Function | SPDT |

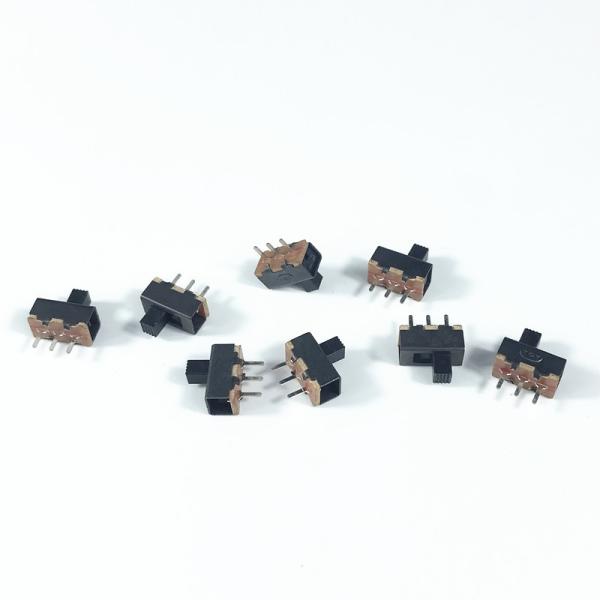

Product Display:
Product Drawing:
Product Application
Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones,
stereos, white goods, health care products, communication
equipment, robots and industrial machinery.
Waterproof Tact Switch Precautions for Safe Use
Use the tact switch within the rated voltage and current ranges,
otherwise the Switch may have a shortened life expectancy, radiate
heat, or burn out. This particularly applies to the instantaneous
voltages and currents when switching.
Packing & Delivery
1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;
2. Original manufacturer package, the out package will be in a well
condition with suitable size to save the shipping cost;
3. Sample with same-day or the next-day delivery, bulk order within
3-7 days, but depens on the exact quantity;
4. Customer shipping account are available;
5. If the declared value for customs clearance are required, please
tell us before shipping;
6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea
shipping.
FAQ:
Q: what is your MOQ for this item?
A: MOQ is 100, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money
Gram
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping.
