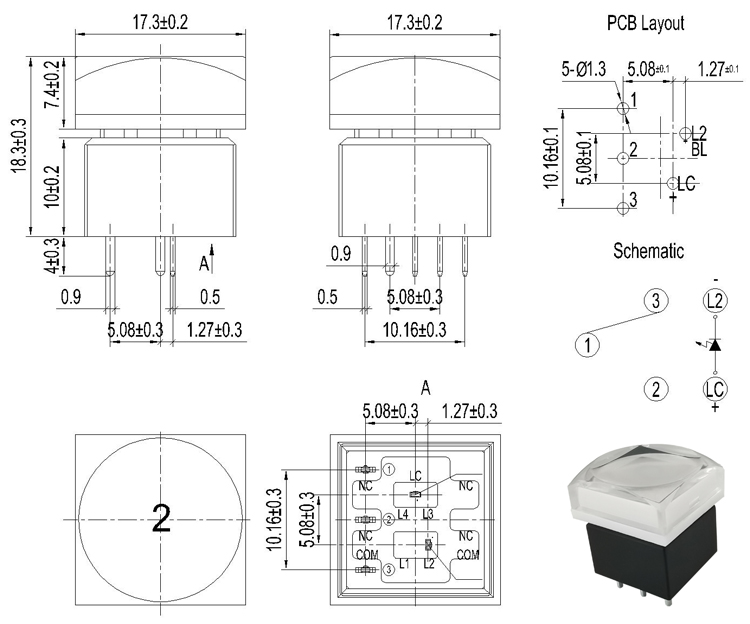

    17x17mm SPDT DPDT Momentary Illuminated Push Button Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : UB2-1560
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    17x17mm SPDT DPDT Momentary Illuminated Push Button Switch

    Illuminated Switch ,17*17mm E-Switch SPDT DPDT Momentary Illuminated Push Button Switch For Console Switcher,Led Switch



    Illuminated tact switch is an electrical equipment switch, which belongs to one of the passive components.
    It can not be used alone. It can only cooperate with the active components to form a set of control system,
    and its role can be brought into play.


    Lamp switches'Features


    Multiple cap options: Lettering, Graphic,Custom legends, Transparent, Silver plating, Balck painting
    UV coating, Round, Square, Rectangle, Customized caps
    • Illumination options: Single colors, Bi-colors, Tri-colors
    • RoHS compliant and compatible

    Materials


    Cap: PC
    Base: Glass fiber reinforced PA66, UL rated 94V-0
    Terminals: Brass, Silver or gold plated
    Switch's Specification
    Function:
    SPST, OFF-(ON), Momentary
    Rating:
    100mA, 12VDC
    Contact Resistance:
    100mΩ Max. (initial)
    Insulation Resistance:
    100MΩ Min. @ 500VDC
    Dielectric Voltage:
    500VAC for 1 min.
    Operating Force:
    200±100gf
    Total Travel:
    4.5±0.5mm
    Operating Life:
    200,000 cycles
    Operating Temperature:
    -25°C to +70°C
    Soldering Process:
    Manual soldering 350°C for 3 sec., wave soldering 270°C for 5 sec

    LED Specifications


    Color
    Forward Current (mA)
    Forward Voltage
    (V) at 20mA
    Luminous Intensity
    (mcd)
    Mon.
    Max.
    Red
    20
    1.95
    2.5
    1000
    Yellow
    20
    2.0
    2.5
    1200
    Green
    20
    2.1
    2.5
    300
    Blue
    20
    2.9
    4.0
    1200
    White
    20
    3.2
    4.0
    1800
    Pure Green
    20
    3.2
    4.0
    2000

    17x17mm SPDT DPDT Momentary Illuminated Push Button Switch

    17x17mm SPDT DPDT Momentary Illuminated Push Button Switch


    The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus
