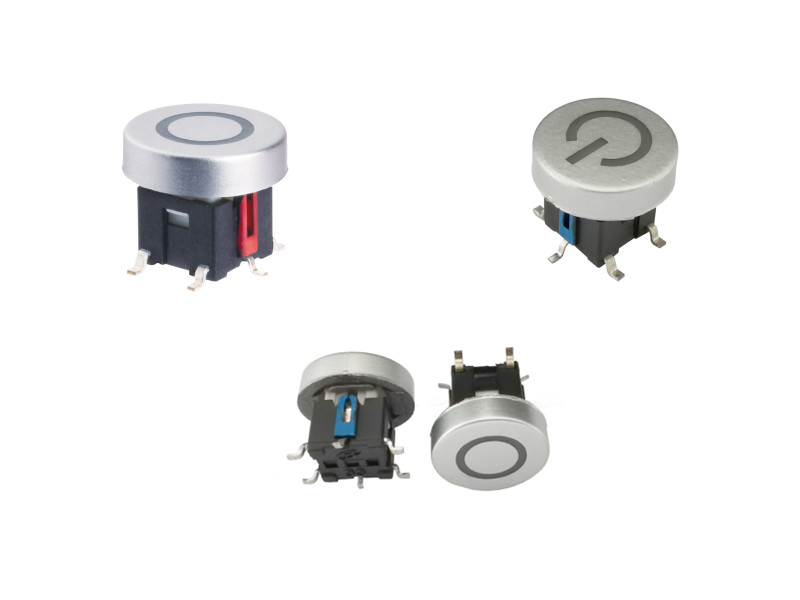

    Illumination Tactile Switch,Smd Silver Cap Pcb LED Push Button Tact Switch ,Lighted Tact Switch,Illuminated Tact Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TL0650
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Illumination Tactile Switch,Smd Silver Cap Pcb LED Push Button Tact Switch ,Lighted Tact Switch,Illuminated Tact Switch

    Illumination Tactile Switch,Smd Silver Cap Pcb LED Push Button Tact Switch ,Lighted Tact Switch,Illuminated Tact Switch




    Illuminated tact switch is an electrical equipment switch, which belongs to one of the passive components.
    It can not be used alone. It can only cooperate with the active components to form a set of control system,
    and its role can be brought into play.


    Purchase Notice


    1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characteristics due to the different conditions, please note that when in use.

    2. The use of through holes brushes circuit board and other recommended board, due to the heart stress of change, so please pre-conditions on the welding and full recognition.

    3. Welding on the set of conditions needed to confirm the actual conditions of mass production.


    Lamp switches'Features


    1.High sensitive,sounds silvery,feeling and rhythm are perfect;


    2.With a fixed-stand and covers in many kinds of structure and color


    3.It can be mounted with single color led and double color or 3 colors led according to preference;


    4.It can be assembled in different ways: DIP⪪ with Pushbutton and tact for operating.


    Materials


    Cap: ABS or PC (polycarbonate)
    Actuator: Polyamide (PA66 or PPA)
    Housing: Fibre glass reinforced PA
    Contact dome: Stainless steel, phosphor copper with silver or gold plated
    Stationary contacts and terminals: Brass with silver or gold plated
    Switch's Specification

    Electrical Rating
    30mA 30VDC
    Life Expectancy
    50,000 / 100,000 / 200,000 / 300,000 / 500,000 cycles
    Contact Resistance
    ≤50mΩ
    Insulation Resistance
    ≥100MΩ at 250VDC for 1 min.
    Dielectric Strength
    250VAC for 1 min.
    Operating Temperature
    -25°C to +75°C
    Relative Humidity
    45% to 85%
    Salt Spray Test
    NSS 48hrs or customized
    Operating Force
    130±50gf / 160±50gf / 200±50gf / 260±50gf / 300±60gf /350±60gf
    Travel
    0.25±0.10mm
    Function
    SPST, OFF-(ON), Momentary
    Bounce Time
    ≤5 mS

    LED Specifications


    Color
    Forward Current (mA)
    Forward Voltage
    (V) at 20mA
    Luminous Intensity
    (mcd)
    Mon.
    Max.
    Red
    20
    1.95
    2.5
    1000
    Yellow
    20
    2.0
    2.5
    1200
    Green
    20
    2.1
    2.5
    300
    Blue
    20
    2.9
    4.0
    1200
    White
    20
    3.2
    4.0
    1800
    Pure Green
    20
    3.2
    4.0
    2000

    Illumination Tactile Switch,Smd Silver Cap Pcb LED Push Button Tact Switch ,Lighted Tact Switch,Illuminated Tact Switch


    The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus



    KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing

    the components such as switches, sockets and connectors. The Production of Products mainly

    used in computer products, consumer electronics, electrical & electronics, industrial equipment

    & components......

    So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland

    China, Taiwan(China) and Hong Kong .




    1.KKG factory with high standard in product quality control;

    2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

    3.Our customers from all over the world, like US, UK,Japan, Germany, Argentina, Mexico, Singapore

    4.One-stop Service for Customers
