    UL 1.27mm Half Pitch DIP Switch With Gull Wing Lead

    Ask Lasest Price
    Brand Name : KKG
    Model Number : SOP01
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

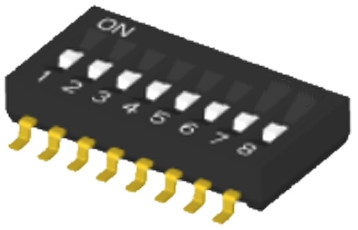

    UL 1.27mm Half Pitch DIP Switch With Gull Wing Lead

    Half Pitch DIP Switch: 1.27mm Gull Wing Lead (Standard) Gull Wing Lead



    Dip switch includes piano type and regular type. The insulator made from engineering plastic,

    with excellent heat resistance and chemical resistance. Dependability and longevity can be

    ensured by standard gold plated contact. The products can be used around 3000 times.

    This series is widely used in different products which need manual programming, such as

    data handing, communication, remote control, burglar alarm system. Products are designed

    in accordance with CE, ROHS, REACH standard.


    DIP Switch SOP Series' Feature

    • Half Pitch(0.05 inch/ 1.27mm) terminal
    • Standard gold-plated electrical contacts
    • Tape sealed version available to ensure washability
    • Singular pole: 1, 3 and 5 avalilable
    • Gull Wing Lead, J Lead and Flat Lead

    DIP Switch SOP Series' Package


    P/NNo. Of PoleDim. AQuantity per Tube
    SOP0112.31mm93 (Half)
    SOP0223.58mm125
    SOP0334.85mm90
    SOP0446.12mm70
    SOP0557.39mm60
    SOP0668.66mm50
    SOP08811.20mm40
    SOP101013.74mm30
    SOP121216.28mm25

    DIP Switch SOP Series' Specification


    Switching25mA, 24VDC
    Non-switching100mA, 50VDC
    Initial50m Ω Max.
    After Life Test100mΩ Max.
    Insulation resistance100mΩ Min at 500VDC.
    Dielectric Strength300VAC/1 minute
    Operating Force500g Max
    Mechanical Life2,000 Cycles
    Electrical Life1,000 Cycles

    DIP Switch SOP Series' Materials

    • Cove & Base: Thermoplatic 94V-0, Black
    • Actuator: Thermoplastic UL 94-HB, White
    • Movable Contact: Copper Alloy, Gold-or Pure-Tin-plated
    • Terminal Contact & Terminal: Copper Alloy, Gold-or Pure-Tin-Plated
    • Tape Sealed: Polyimide Film

    DIP Switch SOP Series' Soldering Information

    • Hand Soldering
      Soldering Iron of 30W or under at 300°C for 4±1 sec. max.
    • Reflow Soldering
      Peak temperature: 260°C max. The time above 255°C must be 30 sec. max
    • Keep all actuators in "OFF" position during soldering and cleaning process

    DIP Switch SOP Searies' Wiring Diagram








    DIP Switch is widely used in household appliances, such as video and audio products, digital products,

    remote controls, communication products, household appliances, security products, toys,

    computer products, fitness devices, medical devices, banknote checking pens, laser pen keys, etc.



    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components R & D and

    manufacturing company, its products are mainly used in consumer electronics, home entertainment

    products, mobile communications products, automotive electronics,medical equipment products.

    By the customer's affirmation. Since the establishment of thecompany in 1998, the company has been

    with the development of electronic components.

    During this period, the company has won many awards such as ISO9001 and quality management

    industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of

    fierce domestic competition, we protect our leadership position and reputation in order to meet new

    challenges.



    1. OEM Manufacturing welcome: Our production capacity can be customized for any product.
    2. Sample order can be accepted.
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you once every two days, until you get the products.

    5. When you got the goods, test them, and give me a feedback.If you have any questions about

    the problem, contact with us, we will offer the solve way for you

    Q: what is your MOQ for this item?

    A: MOQ is 100, but always flexible.



    Q: Can I get some samples?

    A: Sure, Sample order is available.


    Q: what about lead time?

    A: 7-10 days after deposit received.


    Q: terms of payment?

    A: Trade Assurance, T/T, credit card, western union, cash, Money Gram


    Q: My item was damaged in shipping?

    A: Our parts are carefully packaged to prevent damage in shipping.



    For more information kindly contact as below :


    Contact person: Miss Alice Xie


    Email:kkg@kkg


    Tel: 0086-0769-82036866


    Whatapp: 13377785035


    website: www.kkg.tw
