    Twin Contacts Low Profile Box Type Dual Inline Package DIP Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : CI01
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

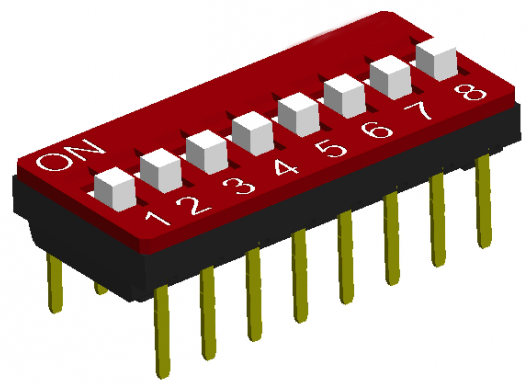

    Twin Contacts Low Profile Box Type Dual Inline Package DIP Switch

    DIP Switch DIA2F01 DIH2F01 ,2PST IC Type DIP Switch



    DIP Switch DI2F Series' Feature


    • Thru-hole/ SMD/ Right Angle version
    • Provides better insertion solution
    • Highly resistant to prevent dump backwards while actuating
    • Twin contacts designed to ensure stable contact

    DIP Switch DI2F Series' Materials

    • Cove & Base: Thermoplatic 94V-0, Black
    • Actuator: Thermoplastic UL 94-HB, White
    • Movable Contact: Copper Alloy, Gold-or Pure-Tin-plated
    • Terminal Contact & Terminal: Copper Alloy, Gold-or Pure-Tin-Plated
    • Tape Sealed: Polyimide Film

    DIP Switch DI2F Series' Soldering Information

    • Hand Soldering
      Soldering Iron of 30W or under at 350°C for 3 sec. max. or at 270°C for 5 sec. max.
    • Wave Soldering
      260±5°C for 10 sec. max.
    • Reflow Soldering.
      Peak temperature: 245 or 250°C max. The time above 240 or 245°C must be 30 sec. max.
    • Keep all actuators in "OFF" position during soldering and cleaning process


    DIP Switch DI2F Series' Specification


    Switching25mA, 24VDC
    Non-switching100mA, 50VDC
    Initial50m Ω Max.
    After Life Test100mΩ Max.
    Insulation resistance100mΩ Min at 500VDC.
    Dielectric Strength500VAC/1 minute
    Operating Force1,000g Max
    Mechanical Life2,000 Cycles
    Electrical Life2,000 Cycles

    DIP Switch DI2F Searies' Wiring Diagram



    Dip switch includes piano type and regular type. The insulator made from engineering plastic,

    with excellent heat resistance and chemical resistance. Dependability and longevity can be

    ensured by standard gold plated contact. The products can be used around 3000 times.

    This series is widely used in different products which need manual programming, such as

    data handing, communication, remote control, burglar alarm system. Products are designed

    in accordance with CE, ROHS, REACH standard.



    • Tube: SOJ/ SOP
    • Tape & Reel: SOJ/ SOP/ SOF
    • Actuators all in "OFF" position

    DIP Switch is widely used in household appliances, 3C (computer, communication, consumer electronics),

    office equipment, medical treatment, security, personal care, automotive electronics, industrial control

    and other fields



    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components

    r & D and manufacturing company, its products are mainly used in consumer electronics,

    home entertainment products, mobile communications products, automotive electronics,

    medical equipment products. By the customer's affirmation. Since the establishment of the

    company in 1998, the company has been with the development of electronic components.

    During this period, the company has won many awards such as ISO9001 and quality

    management industry excellence Award. Designated as "quality Excellence" factory, in the

    harsh environment of fierce domestic competition, we protect our leadership position and

    reputation in order to meet new challenges.




    1. Strong R&D team, Tooling Design & Construction Capacity Experienced &

    professinal engineers, in the line of switch and tooling over 8-15 years.


    2. Improved Quliaty Assurance System100% assurance systems per ISO9001/

    ISO14001/TS16949, make sure each product comply with customer requirement.


    3. Entire production line & Quality Control100% assurance systems per ISO9001/

    ISO14001/TS16949, make sure each product comply with customer requirement.


    4. Good control of cost Self-suppllied metal & plastic parts.Auto-assembly line High

    effective capacity



    Q1 Where can we get the specification?

    A1 Please contact with our staff if you are need.


    Q2 Where can we get the samples?

    A2 We can offer 3-10 samples to our customer for free ,but not include the transport.


    Q3 How about the delivery time of samples?

    A3 The normal delivery time is 1 week. Also ,we will ship the samples within 48 hours

    if there are in stock. If there are not,we need another 1-5 working days to make them.


    Q4 How about the package?

    A4 Regularly, 1000pcs in a bag,then in a box.


    Q5 Can you make the switch as our requirement?

    A5 Of course we can. We are professional switch manufacturer with over 20 years

    research experience.We are always welcome for your customization.
