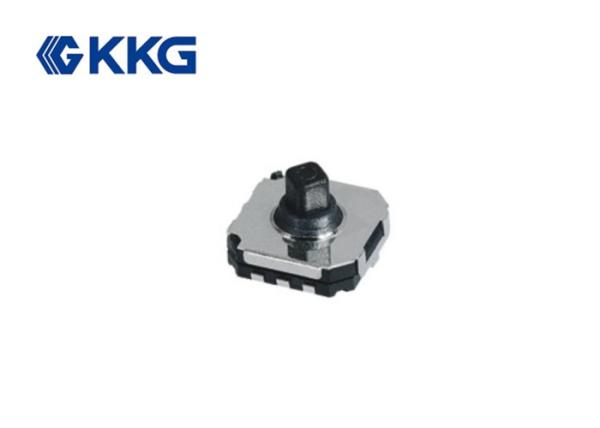

    50,000 Cycles 4 Position Rotary Switch 12v , 4 Way Rotary Switch SGS

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TM-4175
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    50,000 Cycles 4 Position Rotary Switch 12v , 4 Way Rotary Switch SGS

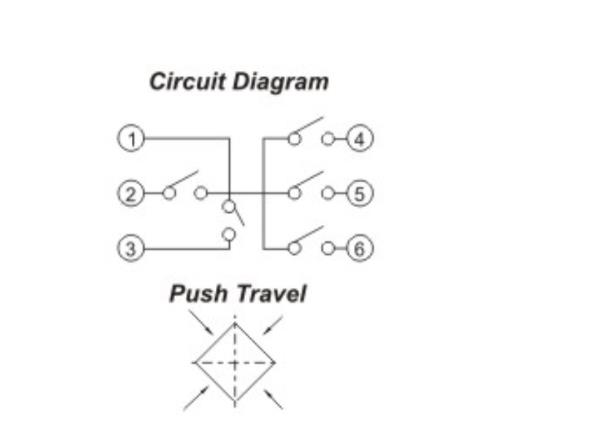

    4-Way Direction Multi-Directional Switch With Operating Force:160±50gf

    1. Rating:DC12V, 50mA Max.


    2. Operating Spec.
    1) Center Push
    a) Operating Force:260±70gf

    b) Stroke:0.15±0.1mm

    2) 4-Way Direction
    a) Operating Force:160±50gf

    b) Stroke:0.2±0.1mm


    3. Life Cycles:50,000 Cycles



    The multi-function switch is installed on the manual valve rocker shaft or joystick of the transmission housing, and is controlled by the shift lever. This switch provides a remote control switch that uses sound and light sensitive elements to convert sound and light signals into electrical signals. After being amplified, they are counted by an up or down counter, and then drive the thyristor to turn on or off the mains. It is also simple and self-contained. Power supply circuit with minimal power consumption


    Rating0.5A 12V
    Mechanical LifeOver 1000000 times
    Electrical LifeOver 800000 times
    Contact ResistanceLess 50M ohm
    Insulation ResistanceOver 100M ohm
    Withstand Voltage1000V 50/60hz last for 1min
    Base MaterialPC+Copper
    Ambient Temperature-25 -+80 Celsius
    Vibration10-55hz 1.5mm Double amplitude
    Operating ForceLess 6N
    WiringSoldering and wire
    Installation WayBushing mount
    Diamensionsee picture
    Waterproof gradeNO
    ApplicationHousehold appliances,Beauty equipment, small boats, lighting, medical equipment, communications and networking equipment, instrumentation,TV camera vedio speaker computer or mobile phone charger
    CertificationCE Rohs
