10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights

    Buy cheap 10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights from wholesalers

    Buy cheap 10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights from wholesalers
    • Buy cheap 10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights from wholesalers

    10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TB01-3011L
    Certification : ISO9001 / CE / SGS
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000 pcs / week
    Delivery Time : 5- 8 days
    • Product Details
    • Company Profile

    10x10mm 6 Pin Momentary Push Button Light Switch For Flashlights

    10*10mm Momentary 6 Pin Illuminated Tact Switch For Flashlights , Remote Control , LED


    We are tact Switch manufacturer and provide Dust-proof Tactile Switch,Water-Proof tact switch,ip67 tact switch,smd tact switch,4 pin tactile switch,6x6 tact switch,12x12 tact switch and other tact Switch.

    We have a large stock and the price is competitive, welcome to contact us to get the best price.

    Applications


    • Consumer Products

    • Instrumentation

    • Computer Products

    • Communication Epuipments

    Feature

    • LED Illuminated, Two color available Long life.

    • Parts of output terminals can be used as jumper lead, facilitating circuit design.

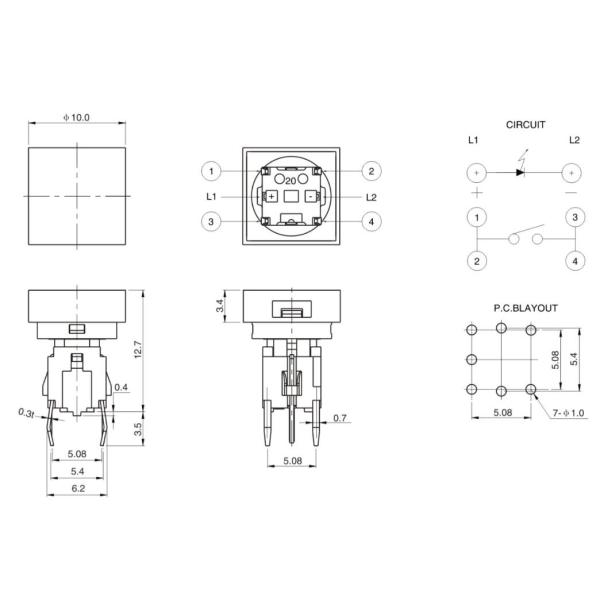

    Type



    Switch Specifications


    SPECIFICATIONS
    Rating12V DC 50mA
    Insulation Resistance100MQ Min(250V DC)
    Dielectric Strength250V AC 50/60Hz for 1 min
    Contact Resistance100mQ Max
    Electrically Life100,000 cycles
    Operating Temperature Range-20,C~+70,C
    Operating Force160±50g/250±80g
    Travel0.25±0.1mm

    LED Specifications


    ColorVRIFRecommended Operating CurrentVF
    Nom.Max.
    RedDC5V20mA20mA2.0V2.4V
    YellowDC5V20mA20mA2.3V2.5V
    GreenDC5V20mA20mA2.4V2.7V
    BlueDC5V20mA20mA3.3V3.6V
    WhiteDC5V20mA20mA3.0V3.6V
    Full GreenDC5V20mA20mA3.0V3.6V
    AmberDC5V20mA20mA2.3V2.5V


    How to order



    1. As we are a coastal city and our factory is closer to the port, the traffic is very convenient.
    2. We support logistics such as DHL/EMS/UPS/FEDEX/TNT. If you have a designated freight forwarder, please let us know in advance.
    3. For OEM orders, we support printing logo on products and packaging. If you need, we can also redesign and produce in
    batchesafter customer approval.



    FAQ

    Q1:Are you a factory or trading company?
    A1:We are a factory, our price is competitive. welcome to visit our factory.


    Q2:How does your factory do regarding quality control?
    A2:All the products will be 100% checked before the shipment.


    Q3:How long is your delivery time?
    A3:Generally it is 7-15 days, the exactly time is according to the quantity.


    Q4:How could I get a sample?
    A4:Free sample, you can take it from our office by your express delivery or pay express fee to us to send you.


    Q5:What is the Shipment way?
    A5:UPS / Fedex / DHL / TNT / EMS. Or please contact us directly which way your preferred.
