SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch

    Buy cheap SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch from wholesalers

    Buy cheap SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch from wholesalers
    • Buy cheap SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch from wholesalers
    • Buy cheap SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch from wholesalers

    SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TB01-1010L/TB01-1014L
    Certification : ISO9001 / CE / SGS
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000 pcs / week
    Delivery Time : 5- 8 days
    • Product Details
    • Company Profile

    SGS Approved Illuminated Round Rocker Switch , Touch Button Light Switch

    Illuminated Tactile Switch Lamp Series ,Round Shape Led Built-In Type Light Tact Switch


    Tact switches have the advantages of small contact resistance, precise operating force errors, and diversified specifications. They are widely used in electronic equipment and white goods, such as audio-visual products, digital products, remote controls, communication products, and household appliances. Electrical appliances, security products, toys, computer products, fitness equipment, medical equipment, currency detector pens, laser pen buttons, etc. Because of the environmental conditions of the light touch switch (the pressure is less than 2 times the elasticity/environmental temperature and humidity conditions and electrical performance), large equipment and high-load buttons are directly replaced by conductive rubber or metal shrapnel of the pot switch, such as medical equipment, TV remote control, etc.


    Applications


    • Consumer Products

    • Instrumentation

    • Computer Products

    • Communication Epuipments

    Feature

    • LED Illuminated, Two color available Long life.

    • Parts of output terminals can be used as jumper lead, facilitating circuit design.

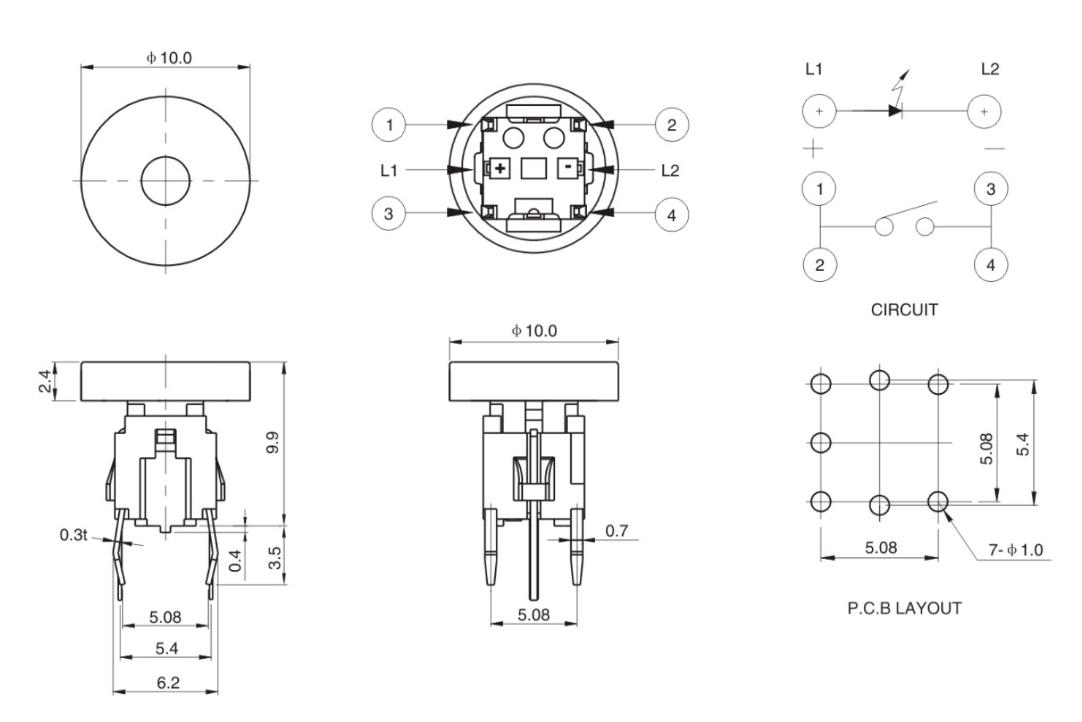

    Type



    Switch Specifications


    SPECIFICATIONS
    Rating12V DC 50mA
    Insulation Resistance100MQ Min(250V DC)
    Dielectric Strength250V AC 50/60Hz for 1 min
    Contact Resistance100mQ Max
    Electrically Life100,000 cycles
    Operating Temperature Range-20,C~+70,C
    Operating Force160±50g/250±80g
    Travel0.25±0.1mm

    LED Specifications


    ColorVRIFRecommended Operating CurrentVF
    Nom.Max.
    RedDC5V20mA20mA2.0V2.4V
    YellowDC5V20mA20mA2.3V2.5V
    GreenDC5V20mA20mA2.4V2.7V
    BlueDC5V20mA20mA3.3V3.6V
    WhiteDC5V20mA20mA3.0V3.6V
    Full GreenDC5V20mA20mA3.0V3.6V
    AmberDC5V20mA20mA2.3V2.5V

    Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.


    Professional supplier of tact switches with stablequality and reliable price, we passed and implementslSo 9001,ISO 14001,OHSAS18001, also get thecertifications of REACH,RoHS,CE ect. introducedof a large number of automatic production equipment,automatic test equipment, including automatic assembly lines, automatic inspecting lines, visionmeasurement machine, ROHS X-Ray Machine, LoadTravel Curve Tester and product life-span testing machine ect.


    How to order






    FAQ

    Q: Are you a factory or trading company?
    A: We are a factory, our price is competitive.welcome to visit our factory.

    Q: How about your quality control?
    A: All the products will be 100% checked before the shipment.

    Q: How could I get a sample?
    A: Free sample,you can take it from our office by your express delivery or pay express fee to us to send you.
