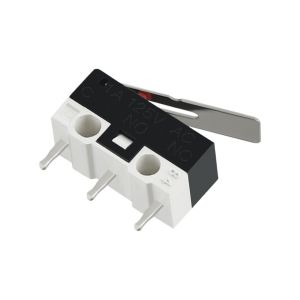

PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved

    Buy cheap PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved from wholesalers

    Buy cheap PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved from wholesalers
    • Buy cheap PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved from wholesalers
    • Buy cheap PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved from wholesalers
    • Buy cheap PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved from wholesalers

    PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved

    Ask Lasest Price
    Brand Name : KKG
    Model Number : MS-1143
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    PCB Terminal waterproof momentary micro switch Sliver plated ROSH Approved

    PCB Terminal Micro Momentary Switch High Quantity For Long Life



    The basic type of micro switch is generally without auxiliary pressing attachment, and derives small stroke

    type and large stroke type. Different auxiliary pressing accessories can be added according to the needs.

    According to the different pressing accessories added, the switch can be divided into various forms such

    as button type, reed roller type, lever roller type, short boom type, and long boom type.


    In terms of size, there are small, super small, super small and so on. Functionally, there is a waterproof type.

    The most common application is the mouse button.


    (1) Small micro switch:
    The general size is 27.8 long, 10.3 wide and 15.9 high. In terms of parameters, it has high capacity and

    low load.
    (2) Subminiature micro switch
    The general size is 19.8 long, 6.4 wide and 10.2 high. It has different functions such as high precision and

    long life.
    (3) Super small micro switch
    The general size is 12.8 in length, 5.8 in width and 6.5 in height. This type has an ultra-thin design.
    (4) Waterproof type


    Micro Switch's Specification:


    Itemmicro switch
    Model NumberKW2-2-06P-30-3
    Rating0.5A 125VAC/ 1A 250VAC
    Temperature Range-25°C~+85°C
    IP CodeIP40
    Dimension12.8*6.5*5.7mm
    Material of Case & KnobPBT
    Material of ContactsSliver plate
    Material of TerminalSliver plated copper
    Electrical Service Life10,000 Cycles
    Mechanical Service Life1,000,000 Cycles
    ApprovalUL, ROSH, CQC, TUV

    Micro Switch's Features:

    Waterproof and dustproof (IP67) design, small size and compact structure. High reliability.The terminal

    blocks are complete. Equipped with various forms of operating handles with global safety certification.A

    variety of installation dimensions meet different installation requirements.






    The micro switch is suitable for cars, shared bicycles, phones, communicatio equipment, electric

    toothbrushes, toys, household appliances, electric controllers, etc.


    1.Strong R&D team, Tooling Design & Construction Capacity Experienced & professinal engineers, in the

    line of switch and tooling over 8-15 years.


    2.Improved Quliaty Assurance System100% assurance systems per ISO9001/ISO14001/TS16949, make

    sure each product comply with customer requirement.


    3.Entire production line & Quality Control100% assurance systems per ISO9001/ISO14001/TS16949, make

    sure each product comply with customer requirement.


    4.Good control of cost Self-suppllied metal & plastic parts.Auto-assembly line High effective capacity



    For more information kindly contact as below :


    Contact person: Miss Alice Xie


    Email:kkg@kkg


    Tel: 0086-0769-82036866


    Whatapp: 13377785035


    website: www.kkg.tw
