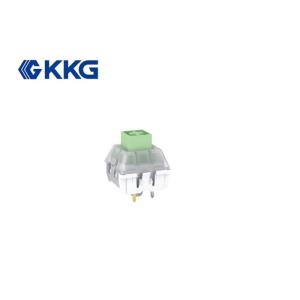

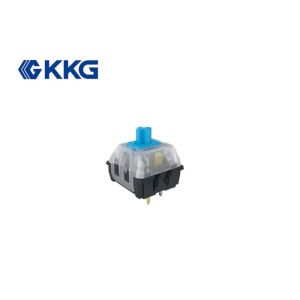

    Low Profile Tactile Keyboard Switch 4.0mm Total Travel 200mOHM Max Resistance

    Ask Lasest Price
    Brand Name : KKG
    Model Number : PK150H
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    Low Profile Tactile Keyboard Switch 4.0mm Total Travel 200mOHM Max Resistance

    Slim Mechanical Push Button Switch With12V AC/DC Max.2V DC Min
    Specification:

    1. Rating: 12V AC/DC max.2V DC min
    10mA AC/DC max.10uA DC min
    2. Contact Resistance: 200mΩ max
    3. Insulation Resistance: 100MΩ Min(DC100V)
    4. Withstand Voltage: AC500V(50-60Hz)for 1minute
    5. Bounce Time: ≤ 5msec(at 16in/sec. actuation speed)
    6. Operating Force: 60±10gf
    7. Tactile Force: 50110gf
    8. Conduction travel: 2.00mm±0.6mm
    9. Breaking travel: 1 .5mm±0.6mm
    10.Total Travel: 4.0±0.5mm


    Electrical CharacteristicsRating12VDC/AC max. 10mA AC/DC max
    Contact Resitance200M max (25M typical )(initial value)
    Insulation Resistance100M Min
    Voltage ResistenceAC 100V (50-60Hz) 1Minute
    Eletrical lifeOver 50,000,000 cycles (Load)
    Bounce Time400mm/s 5msec (operation speed at 400mm/spec)
    Mechanical ReliabilityOperating ForceSee Detail Spec
    Pre-travel2.0+/-0.6mm
    Total Trave4.0+/-0.4
    Mechanical LifeOver 50,000,000 cycles (No Load)
    Operating Temperature Range(-40℃~ + 80℃)
    Ambient Humidity</= 85% RH max
    Solder ability260℃+/-5℃ 3S+/-0.5S
    Soldering Heat Resistance260+/-5℃ 3S+/-1S
    Soldering by handUse a 30 watts soldering iron for about 3S at 350while soldering
    Trade Terms1.The price is based on FOB Shenzhen or Hongkong or EXW factory
    2.MOQ:5000pcs
    Payment:T/T payment,50% deposit before production, balance 50% before shipment
    CertificatesISO9001&TS16949
    ENEC UL CUL &CQC
    RoHS & Reach




    KKG ELECTRONICS ELECTRIC C0., LTD. is a company which devotes it self to researching and manutacturing the components such as switches, sockets and connectors. The Production of Products mainly used in computer products, consumer electronics, eltricala&electronice, industrial equipment&components ...

    So far, KKG set up own factry. Processing factory,OEM factory and sales company in mainland China.,aiwan(China) and HongKong. During this timethe company had won mary awards. Just like the industry first prie for the IS09001 and the quality management.

    Our company have been appointed by the " Excellent Quality ”Factory, Under the Harsh Environment of The Fierce Domestic Compettion. In order to meet the new callenge and keeping our leadership and the reputation.

    In this fast changing electronic world of ours, what our customers need is building a long-term relationship that can form strategic lliances, instead of just an electronic component supplier or manutacturer. We believe that the partners needed by our customers are those who can provide diversified products with better quality, higher technology, and shorter delivery time to maintain competence in the market.
