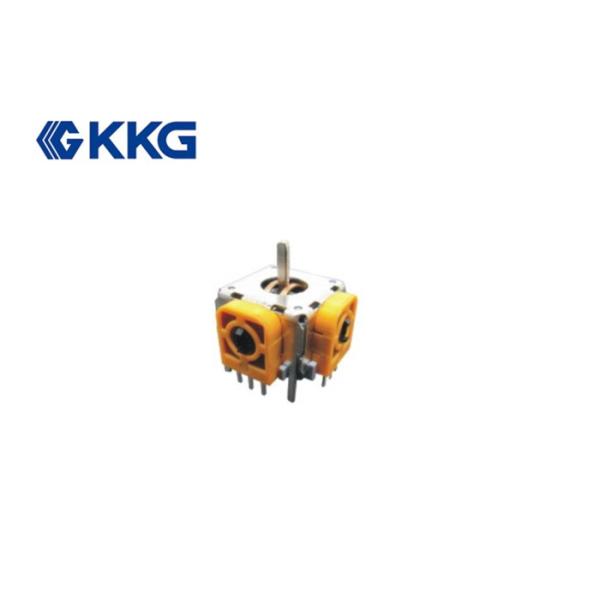

5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer

    Buy cheap 5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer from wholesalers

    Buy cheap 5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer from wholesalers
    • Buy cheap 5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer from wholesalers

    5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TM-1224
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    5KQ~ 100KQ Bushing Mount Multi Directional Switch Joystick Potentiometer

    5KQ~ 100KQ Multi-Directional Switch , Joystick Potentiometer Switches
    The switch element is small, the structure is simple, the cost is low, the work is safe and reliable, and it is easy to use.
    Convenient, strong anti-interference, there is no constant light phenomenon after power failure, and it can control one or more electric lights and other electrical appliances. It is a single-wire access multi-function switch with sound, light control and manual switch functions. It has strong practicability.

    1.Total Resistance:5KQ~100KQ

    2. Rated Power:Tape B: 0.0125w
    3. Insulation Resistance:More than 100MQ at DC 250V

    4.Travel of the Slide Bar:60°±6°
    5.Operating Force of Slide Bar:160±40gf

    6.Operating Life:2000,000 Cycles Min

    7.Temperature Range:-10℃-+70℃


    Rating0.5A 12V
    Mechanical LifeOver 1000000 times
    Electrical LifeOver 800000 times
    Contact ResistanceLess 50M ohm
    Insulation ResistanceOver 100M ohm
    Withstand Voltage1000V 50/60hz last for 1min
    Base MaterialPC+Copper
    Ambient Temperature-25 -+80 Celsius
    Vibration10-55hz 1.5mm Double amplitude
    Operating ForceLess 6N
    WiringSoldering and wire
    Installation WayBushing mount
    Diamensionsee picture
    Waterproof gradeNO
    ApplicationHousehold appliances,Beauty equipment, small boats, lighting, medical equipment, communications and networking equipment, instrumentation,TV camera vedio speaker computer or mobile phone charger
    CertificationCE Rohs
