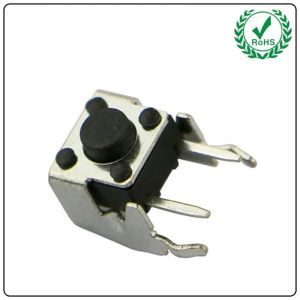

    6*6 Tact Switch With Bracket Side-DIP Tactile Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TK-066H
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    6*6 Tact Switch With Bracket Side-DIP Tactile Switch

    DIP Tact Switch 50mA Waterproof Tact Switch 4Pin Micro-Miniature Tact Switch
    The tact switch is the fourth-generation switch product developed with the requirements of the development of electronic technology. The earliest volume is 12mmx12mm, 8mm and 8mm, and now it is 6mm less than 6om. The product structure has three types: vertical, horizontal and horizontal with ground terminal. Now there are two types of combination (3M, 4M, SM, 6M, SM) and potentiometer touch switch combination, which can meet the requirements of various domestic electronic products. . There are three installation sizes: 6.smm, 4.5mm, 5.5mm, 4mm, and 6mm, 4mm. There are 4.5mm and 4.5mm small tact switches and chip type tact switches in foreign countries, and the chip type tact switches are suitable for surface assembly. The use of conductive rubber switches is also very popular

    TACT SWITCH


    1,100% brand new and high quality.
    2, Easy to install and use.
    3, Easy structure, mini body,
    4, Widely used to control operation of many power electronic
    projects, Tact switch (commonly referred to as tactile switch)
    can be found on almost all computing appliances


    Specification


    Contact Rating:50mA, 12V DC
    Contact Resistance:100mΩ max.
    InsulationResistance:100MΩ min. 100V DC
    Dielectric Strength:100V AC/1 minute
    Operating Force :100gf ± 50gf; 160gf± 50gf; 260gf ± 50gf
    Travel :0.20 ± 0.1mm
    Operating Life:≥100,000 Cycles


    Feature


    • Process sealed tactile switch
    • 100 and 260gf option
    • Right angle design
    • Long life - up to 1M cycles


    —Crisp clicking by tactile feedback;
    —Prevent flux rise by insert-molded terminal;
    —Ground terminal is attached;
    —Snap-in mount terminal;


    Tact Switch
    Contact Configuration
    ON-OFF
    Temperature

    -20℃ to 85℃

    Insulation Resistance
    ≥ 100MΩ
    Contact Resistance
    ≤ 100mΩ
    Withstand Voltage
    AC250V/min

    Application


    Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment, robots and industrial machinery.


    Packing & Delivery


    1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;

    2. Original manufacturer package, the out package will be in a well condition with suitable size to save the shipping cost;

    3. Sample with same-day or the next-day delivery, bulk order within 3-7 days, but depens on the exact quantity;

    4. Customer shipping account are available;

    5. If the declared value for customs clearance are required, please tell us before shipping;

    6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea shipping.
